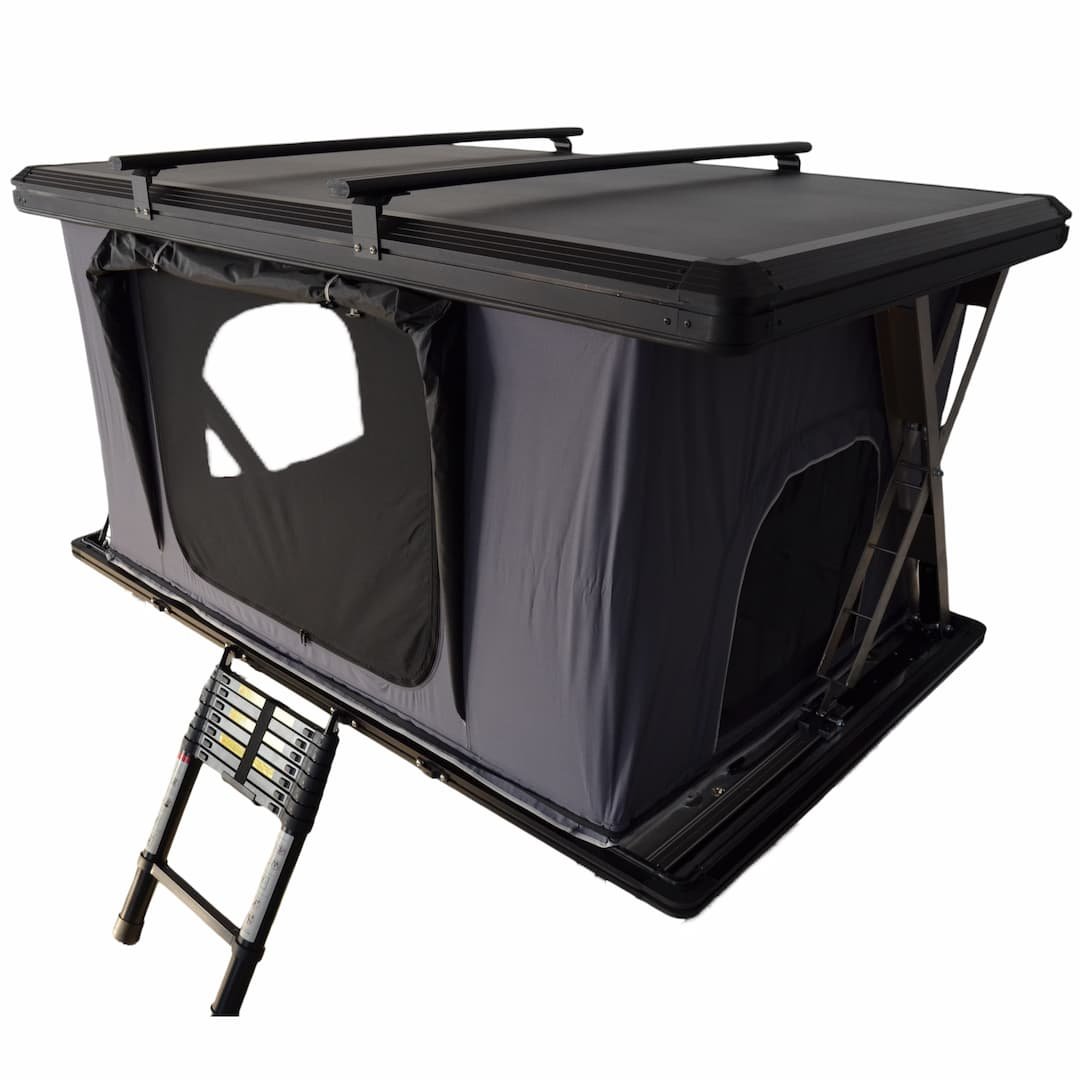

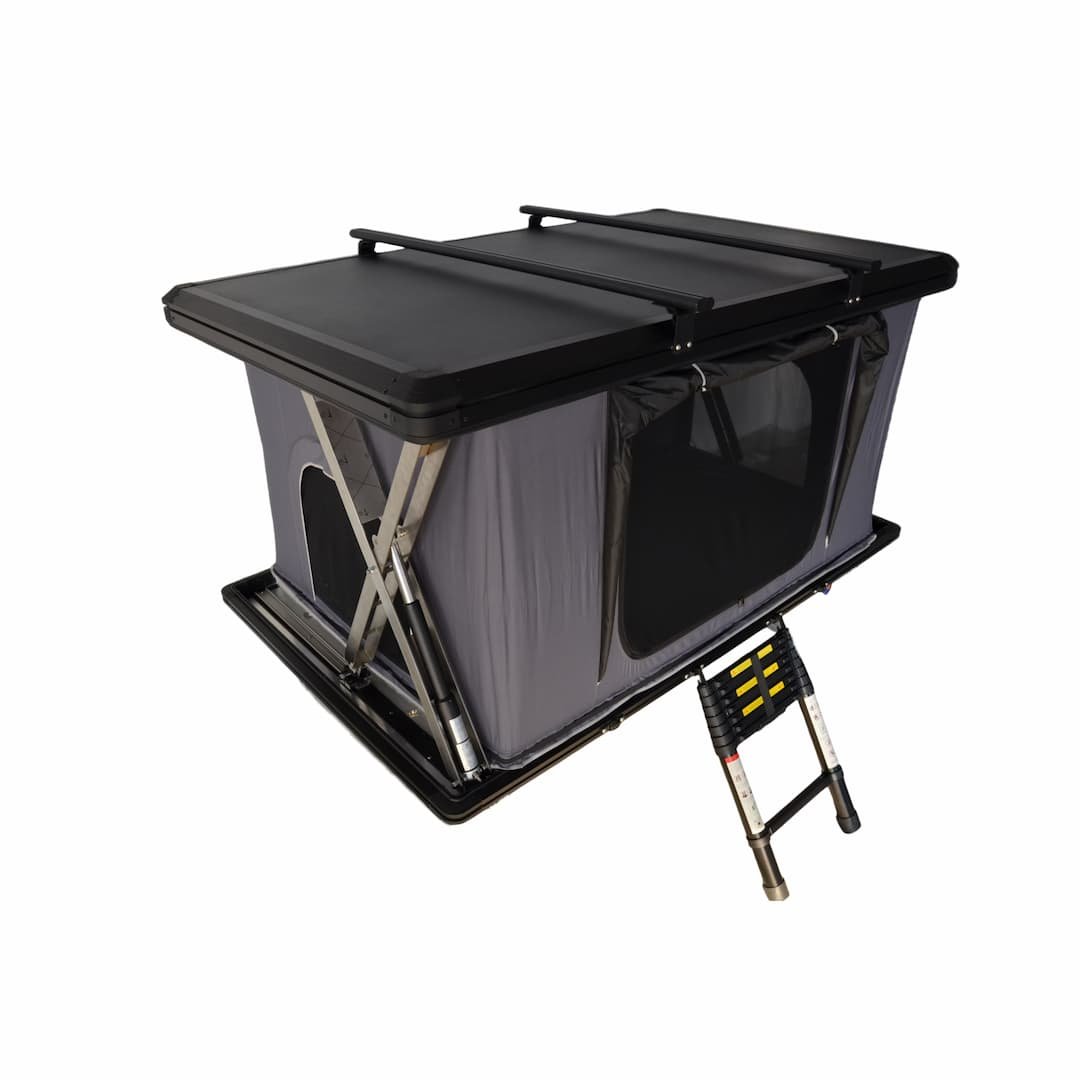

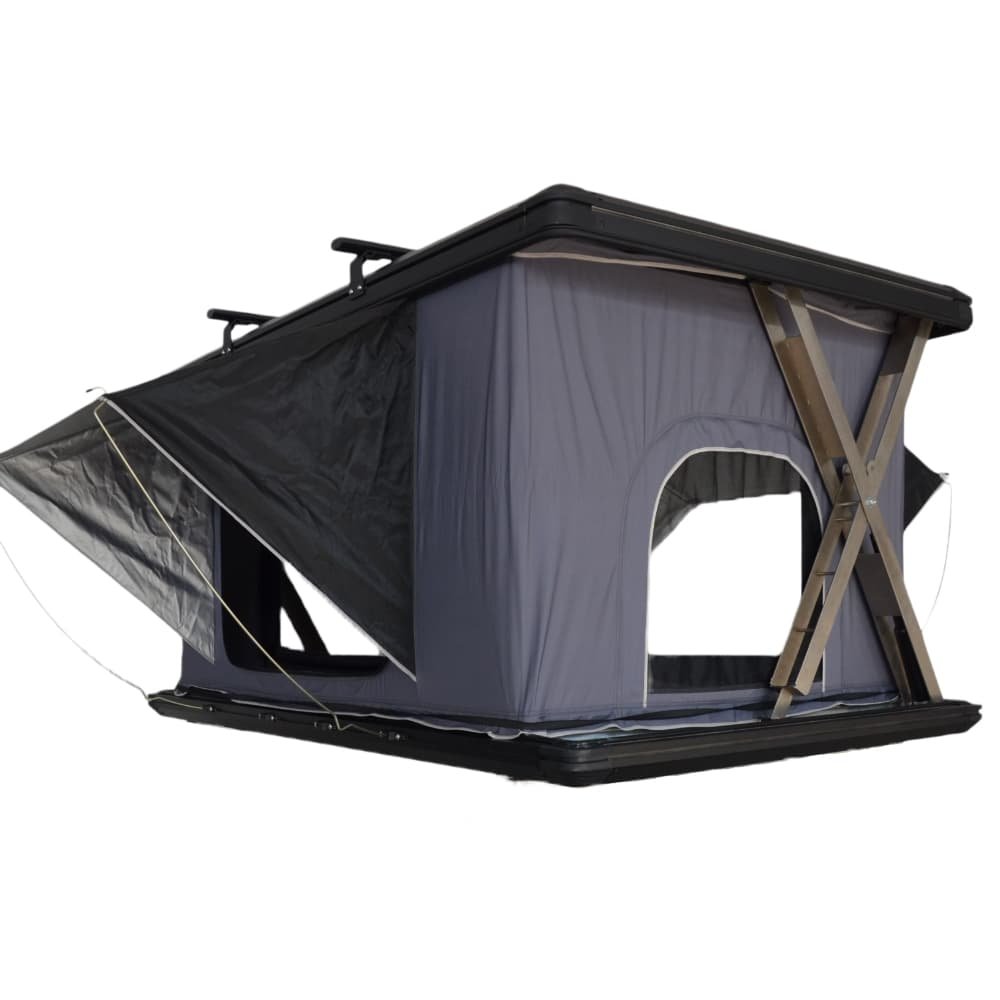

SPORTGUST MODEL X Series – Electric Rooftop Tents
Overview
The MODEL X Series combines cutting-edge electric convenience with safety-first engineering. These remote-controlled, one-touch rooftop tents are designed for adventurers who want effortless setup without compromising on security.
Safety feature: One-touch opening; press and hold the button to close – prevents accidental operation.
Available in two sizes — Small (Double) and Large (Family) — both models feature a sleek design, durable aluminum honeycomb construction, and smart storage solutions.
Model Comparison
| Model | X Small – Electric Double | X Large – Electric Family |
|---|---|---|
| Best For | Couples | 2 adults + 1 child |
| Open Size (cm / in) | 220 × 140 × 105 (86.6 × 55.1 × 41.3) | 220 × 152 × 150 (86.6 × 59.8 × 59.1) |

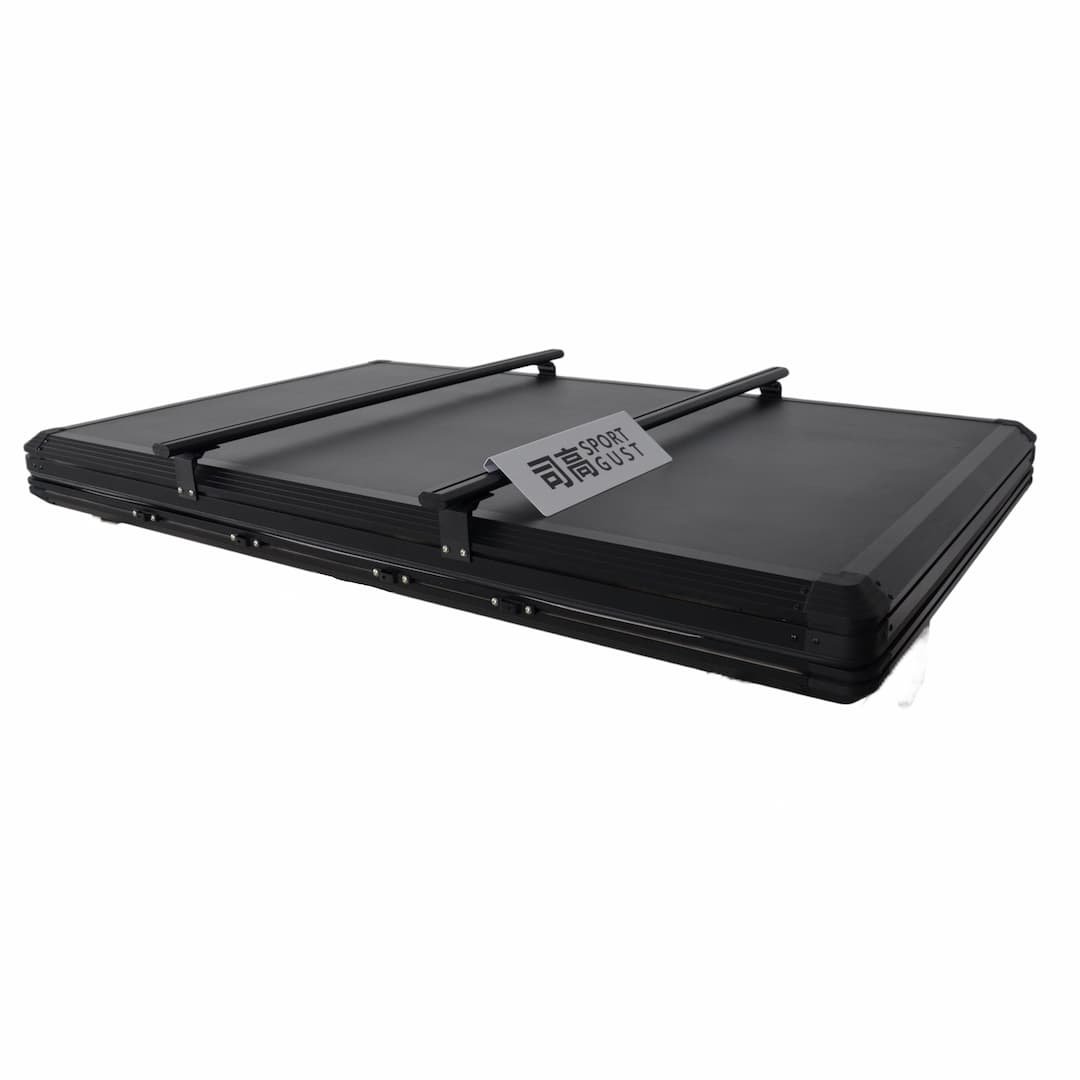

| Closed Size (cm / in) | 220 × 140 × 18 (86.6 × 55.1 × 7.1) | 220 × 152 × 18 (86.6 × 59.8 × 7.1) |
| Closed Internal Height (cm / in) | 10 cm (3.9 in) – stores bedding and gear | 10 cm (3.9 in) – stores bedding and gear |
| Mattress Size (cm / in) | 200 × 120 × 7 (78.7 × 47.2 × 2.8) | 200 × 135 × 7 (78.7 × 53.1 × 2.8) |
| Operation | One-touch up, press-and-hold down | One-touch up, press-and-hold down |
| Power Supply | 12V DC | 12V DC |
*Net weight: X Small 95 kg (209 lbs) / X Large 105 kg (231 lbs) – excludes ladder*
Key Features
One-touch opening; press-and-hold to close – prevents accidental operation
CE-certified electric actuator – 6,000N (3,000N optional), tested to 200,000 cycles
13 cm (5.1 in) closed internal height – stores pillows, bedding, and gear
Aluminum honeycomb shell – bonded with ISR7003 adhesive, 5‑year waterproof frame warranty
280g polyester fabric – 3000mm waterproof, UV50+, SBS zippers
Dual-layer memory foam mattress – 7 cm (2.8 in) total with anti‑condensation mat
304 stainless steel hardware standard (316 marine‑grade optional)
300 kg (661 lbs) internal capacity
Is tent breathable?
Yes, breathability can be built in. Our tents optional fabric feature:

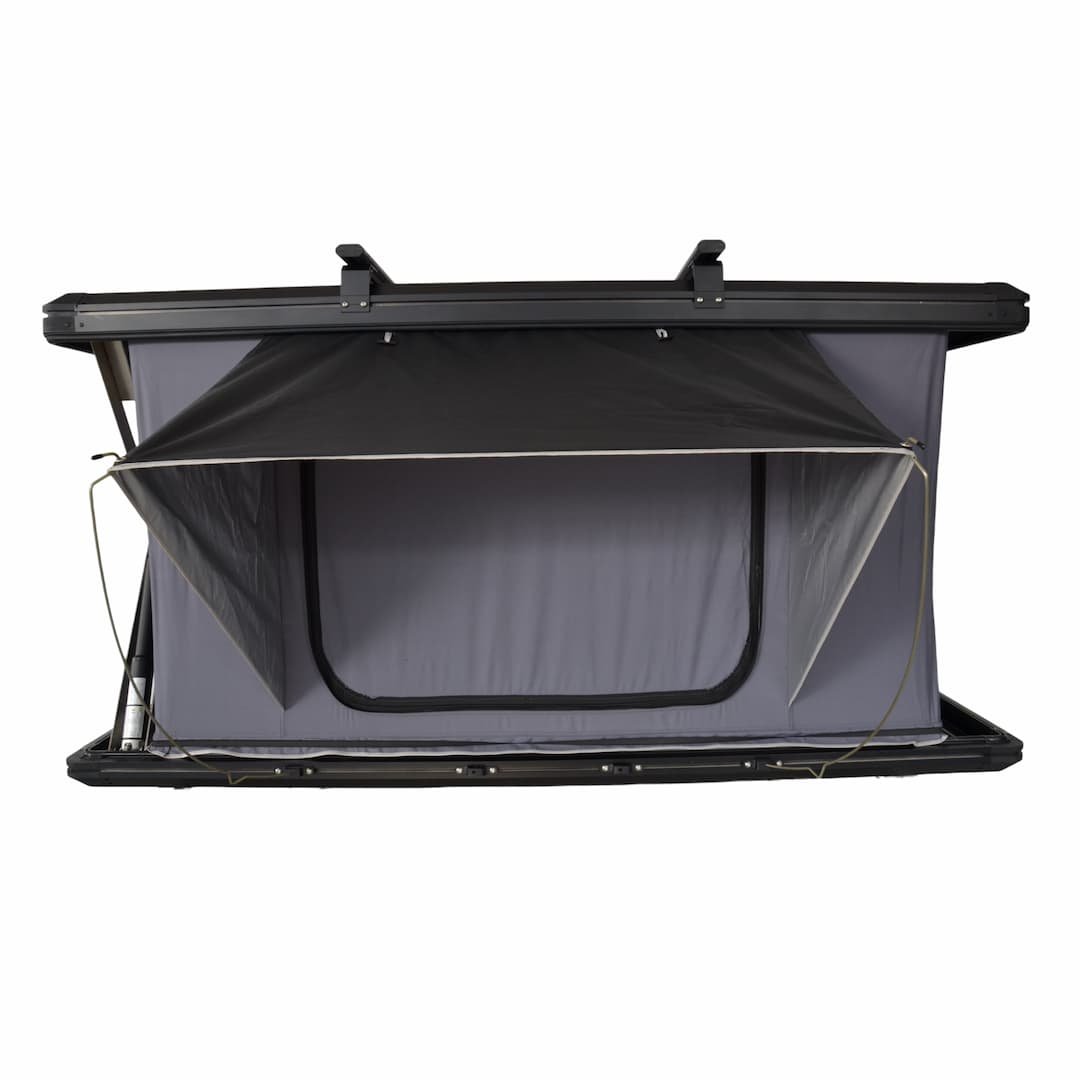

Ventilation windows for airflow
Breathable fabric layers that wick moisture
Mesh panels to reduce condensation while keeping bugs out
Can the aluminum shell be painted white?
Absolutely. Costs less than you’d expect.
With over 200 fabric colors to choose from and the ability to custom-paint the aluminum shell — white, burgundy, cement gray, or anything in between — we give you the freedom to create a rooftop tent that truly stands out.
What's the highest warranty period?
Standard warranty: 1 year. For 4WD rental businesses, we offer flexible solutions — with extended coverage up to 5 years. Tell us what your fleet needs, and we’ll build a plan around it.
Can I get a sample for quality check?
Sure. Sample cost is refundable with bulk orders.Welcome to contact us for more information.
Will it fit a tall person who is over 6.5ft/2meters?
Our global standard is the 6.5ft/2meters tent—we’ve found it’s the sweet spot for most markets. That said, we can absolutely tailor-make a different size for you, and our lead time is very short.
Product Details
SPORTGUST MODEL X Series – Electric Rooftop Tents
Overview
The MODEL X Series combines cutting-edge electric convenience with safety-first engineering. These remote-controlled, one-touch rooftop tents are designed for adventurers who want effortless setup without compromising on security.
🔐 Safety You Can Trust
| Safety Feature | Details |
|---|---|
| CE-Certified Actuator | 6,000N electric lift system (3,000N optional) – fully CE certified for peace of mind |
| One-Touch Opening | Effortless one-touch opening with a single press |
| Safe Closing | Designed for safety — must press and hold the button to close, preventing accidental operation |
| 200,000-Cycle Lifespan | Tested for long-term durability and reliability |
📐 Model Comparison
| Model | X Small – Electric Double | X Large – Electric Family |
|---|---|---|
| Best For | Couples | 2 adults + 1 child |
| Open Size (in / cm) | 86.6″ × 55.1″ × 41.3″ (220 × 140 × 105 cm) | 86.6″ × 59.8″ × 59.1″ (220 × 152 × 150 cm) |
| Closed Size (in / cm) | 86.6″ × 55.1″ × 7.1″ (220 × 140 × 18 cm) | 86.6″ × 59.8″ × 7.1″ (220 × 152 × 18 cm) |
| Closed Internal Height (in / cm) | 3.9″ (10 cm) – space for pillows, bedding, and gear | 3.9″ (10 cm) – space for pillows, bedding, and gear |
| Mattress Size (in / cm) | 78.7″ × 47.2″ × 2.8″ (200 × 120 × 7 cm) | 78.7″ × 53.1″ × 2.8″ (200 × 135 × 7 cm) |
| Carton Size (in / cm) | 92.1″ × 60.6″ × 8.7″ (234 × 154 × 22 cm) | 92.1″ × 65.4″ × 8.7″ (234 × 166 × 22 cm) |
| Net Weight (lbs / kg) | 209 lbs (95 kg) | 231 lbs (105 kg) |
| Gross Weight (lbs / kg) | 242 lbs (110 kg) | 264 lbs (120 kg) |
| Operation | Remote-controlled, one-touch electric lift | Remote-controlled, one-touch electric lift |
Net weight excludes aluminum ladder.
📦 Container Loading (Approximate)
| Container | X Small | X Large |
|---|---|---|
| 20GP | 35 sets | 34 sets |
| 40GP | 75 sets | 71 sets |
| 40HQ | 83 sets | 78 sets |
| 45HQ | 93 sets | 89 sets |
🔧 Common Specifications (Both Models)
| Component | Details |
|---|---|
| Shell | Aluminum alloy; default black (white available, MOQ 100 units); bonded with ISR7003 adhesive – 5-year waterproof frame warranty |
| Fabric | 280G polyester with PU coating; waterproof 3000mm, UV50+; SBS zippers, silicone-taped seams |
| Anti-Bug Mesh | 110g eco-friendly, color-fixed mesh |

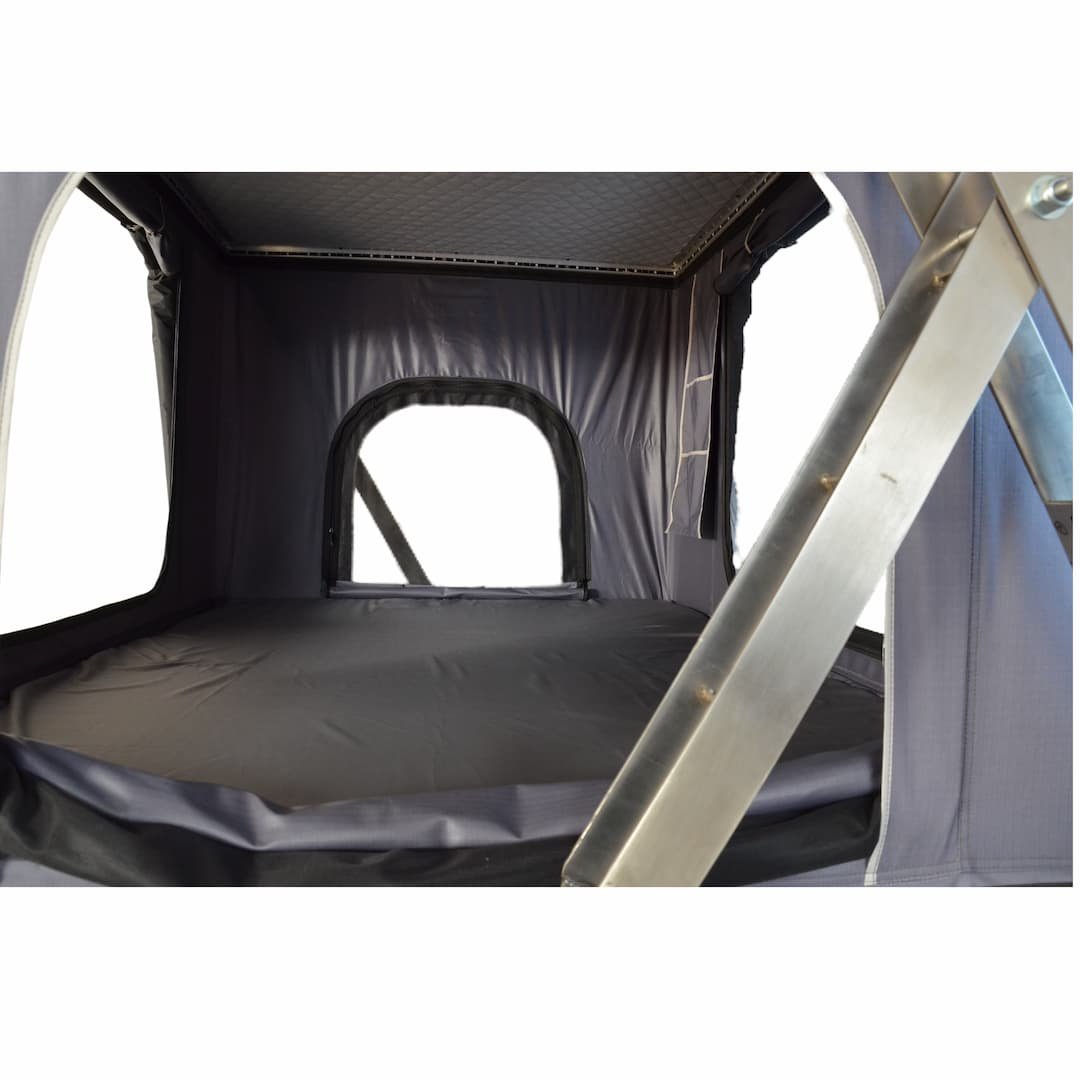

| Mattress | Dual-layer: 2cm memory foam + 5cm high-density sponge (total 7cm / 2.8″) + 6mm anti-condensation mat included |

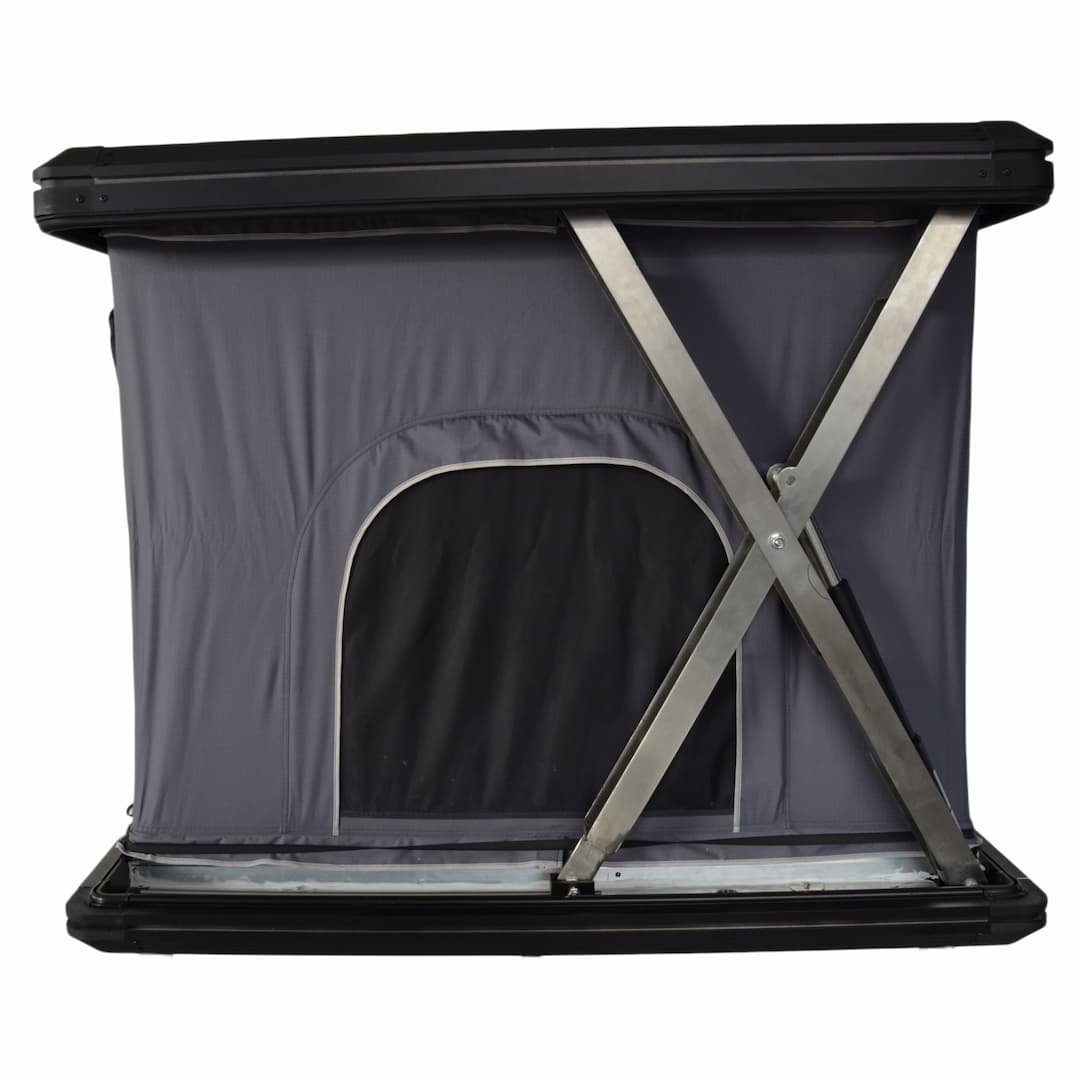

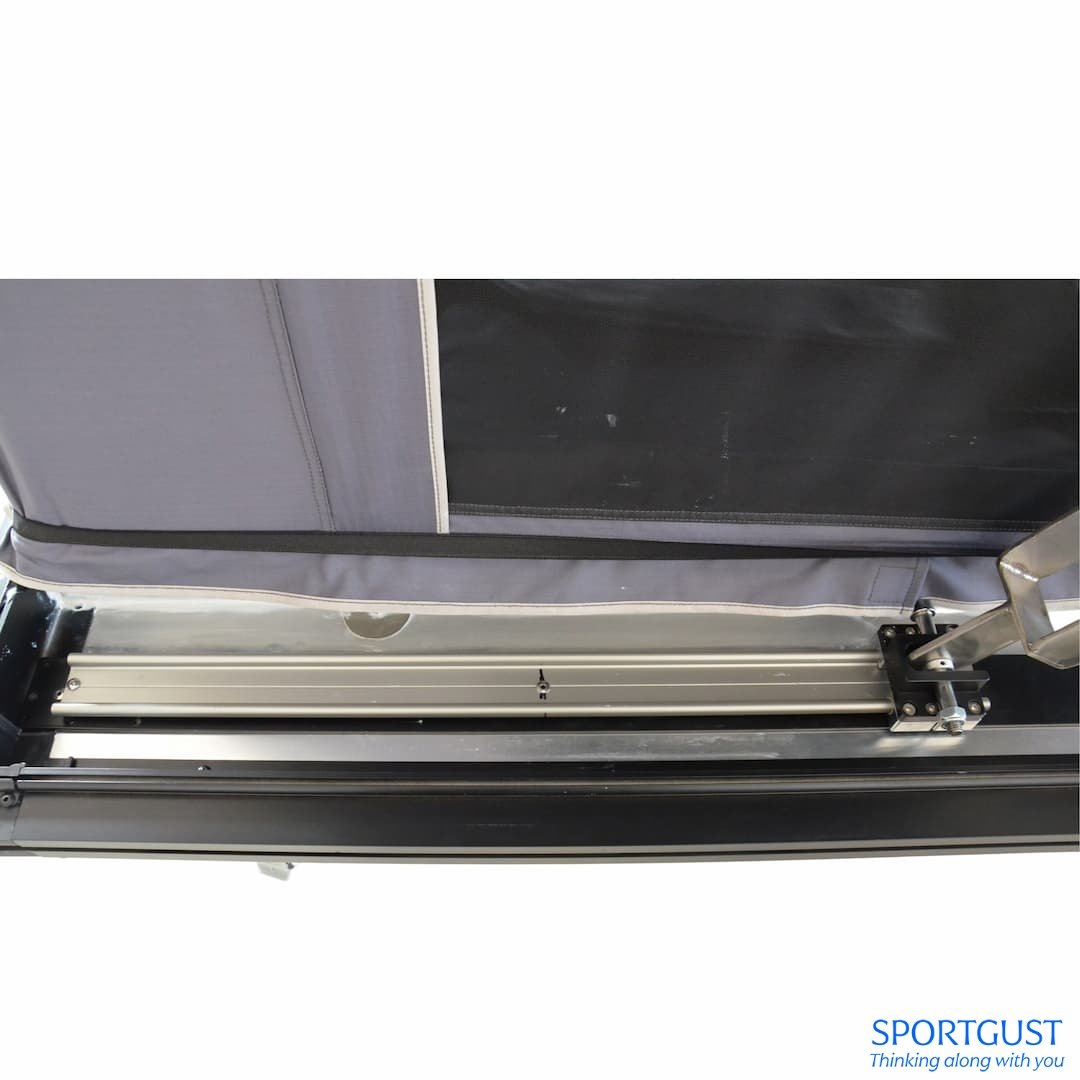

| Lift System | 6,000N electric actuator (3,000N optional), CE certified, tested to 200,000 cycles |
| Operation | One-touch opening; press and hold to close for safety |
| Power Supply | 12V DC (compatible with vehicle battery or auxiliary power) |

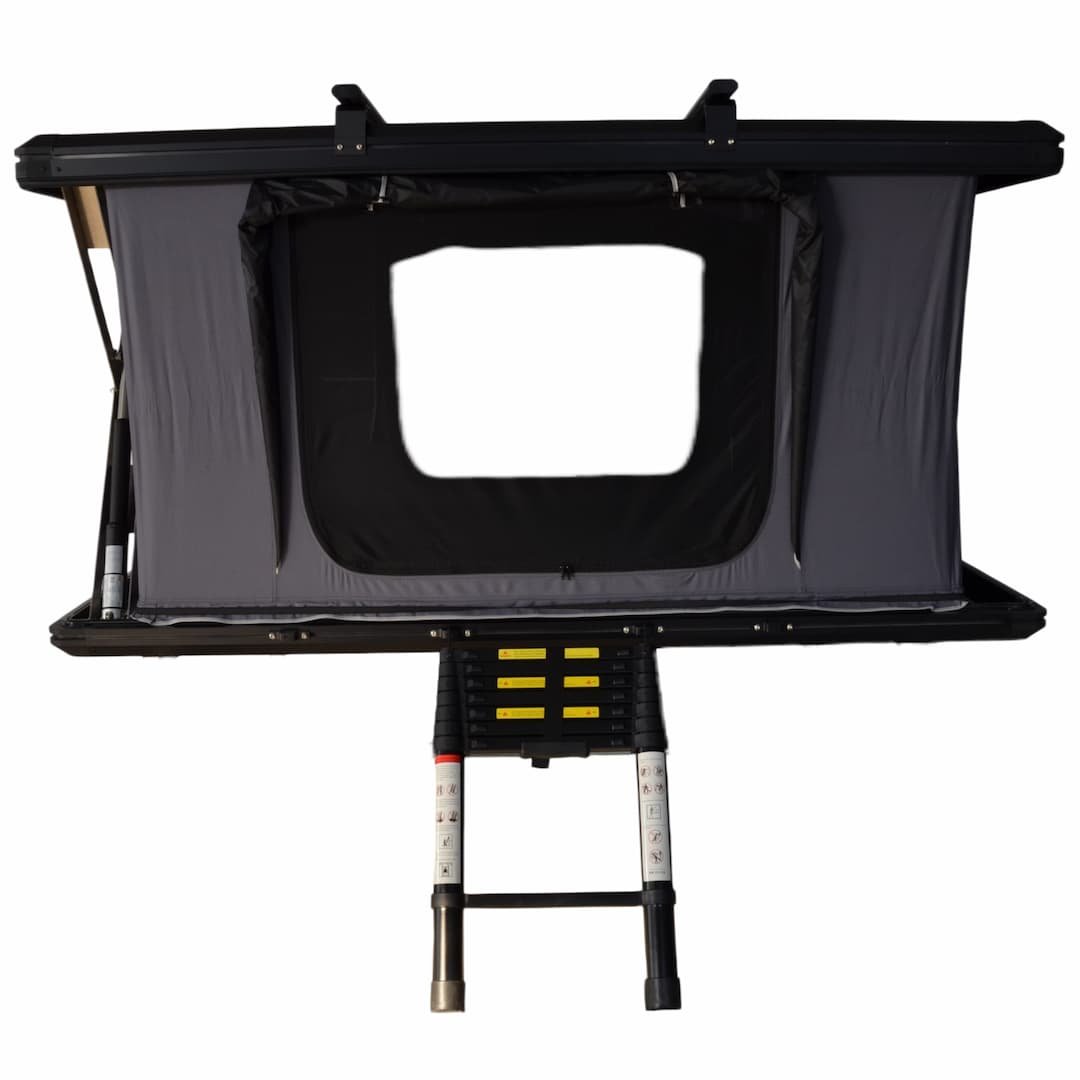

| Ladder | Telescopic aluminum ladder, 7.5′ (2.3m) standard (8.5′ / 2.6m optional) |
| Internal Capacity | 661 lbs (300 kg) – both models |

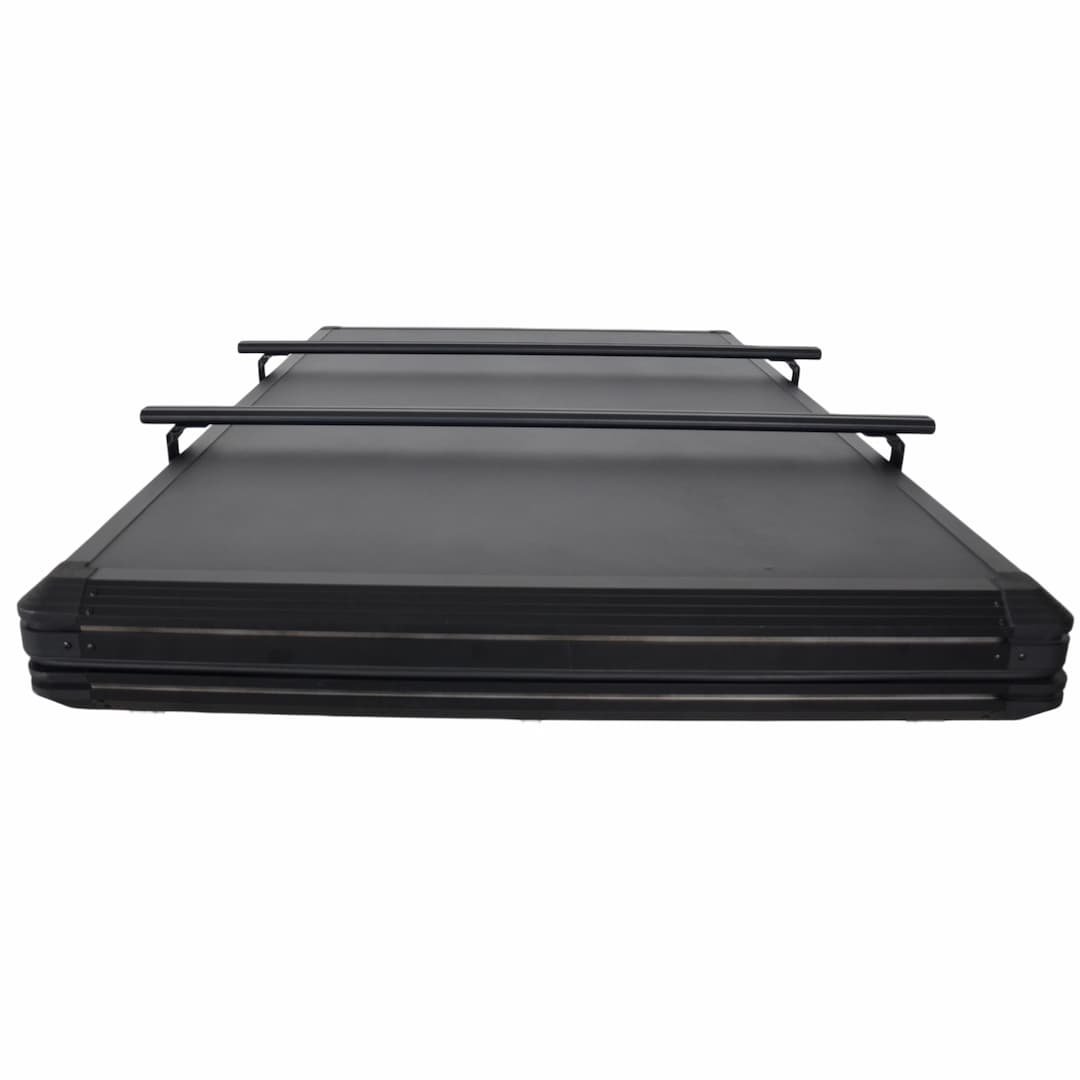

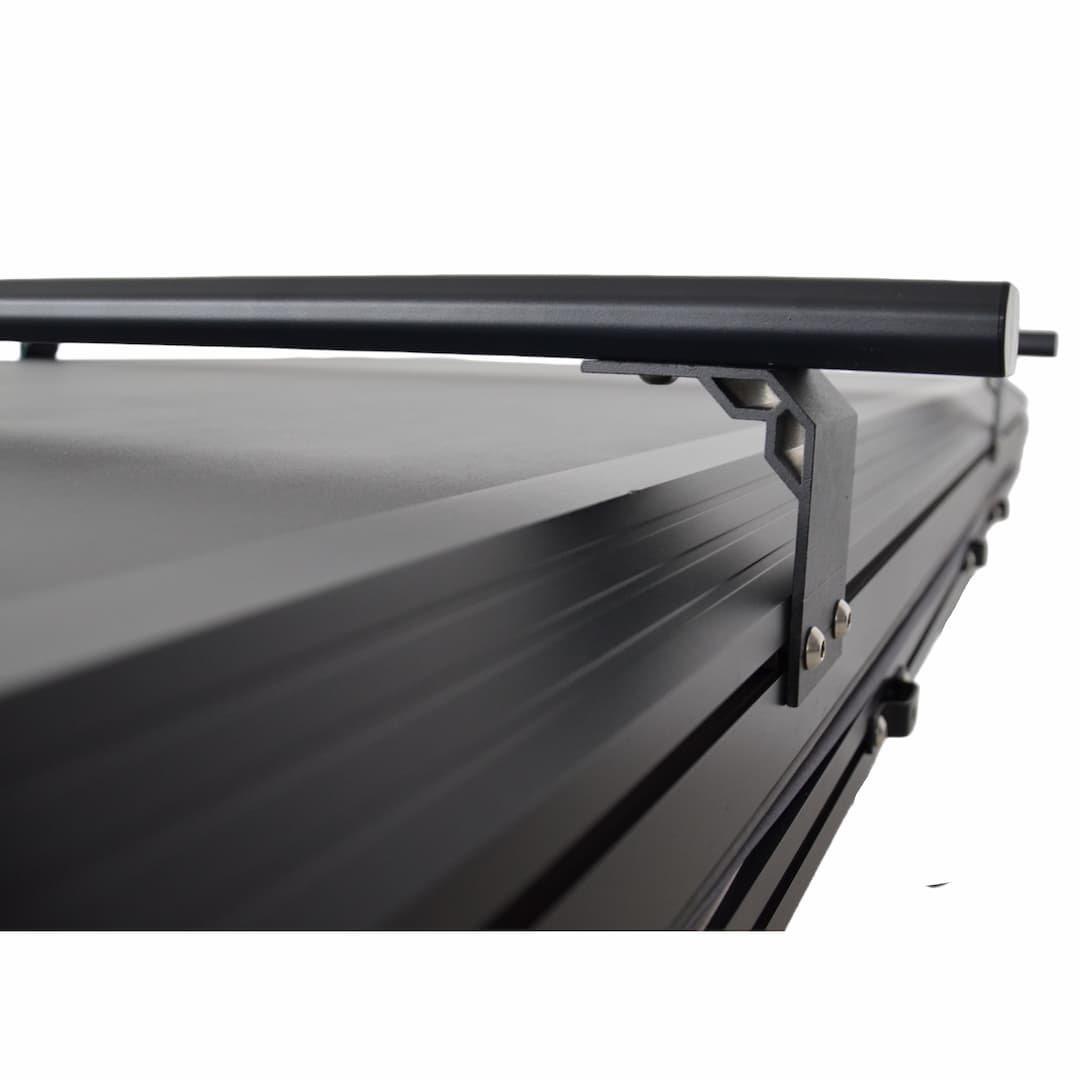

| Scalability | Standard components include two crossbars and mounting accessories (optional); other mounting styles require drawings or samples for confirmation |
🎨 Customization Options
| Option | Details |
|---|---|
| Fabric Type | Poly-cotton blend available |
| Performance Fabric | Moisture-wicking or breathable options available |
| Fabric Colors | Over 200 colors available |
| Shell Color | Default black; white available (MOQ 100 units) |
| Logo Printing | Available on fabric or shell |
| Thermal Insulation Kit | Optional add-on for all models |
✅ Why Choose MODEL X Series?
✅ CE-certified electric actuator – 6,000N (3,000N optional), tested to 200,000 cycles
✅ One-touch open, press-and-hold close – safety first, always
✅ 3.9″ (10 cm) closed storage height – room for bedding and gear inside
✅ 5-year waterproof warranty on frame bonding
✅ 661 lbs (300 kg) internal capacity – sturdy and safe
✅ UV50+ & 3000mm waterproof fabric – all-weather protection
✅ Dual-layer memory foam mattress – premium sleep quality
✅ Flexible mounting options – standard or custom solutions
✅ Wide customization – colors, fabrics, branding, accessories
✅ Container loading data provided – easy logistics planning
Sportgust MODEL X Series – Safe. Smart. Ready for Adventure.
