Model T Lift-Up
Model T Lift-Up
Innovative full‑lift design saves effort with no extra poles needed, while expanding your space for ultimate comfort. The bull nose front improves aerodynamics, and the ultra‑thin 12 cm closed profile fits into any garage. Internally mounted stainless steel gas struts (60,000 cycles tested) and a 5‑year waterproof frame warranty give you peace of mind.
| Model | External Size (m) | Mattress Size (m) | External (ft) | Best For |
|---|---|---|---|---|
| 2.0 Standard | 2.00 × 1.30 | 1.90 × 1.20 | 6.6′ × 4.3′ | Couples |
| 2.5 Family | 2.10 × 1.45 | 2.00 × 1.35 | 6.9′ × 4.8′ | 2 adults + 1 child |
*Tent fabric: 280g polyester, 3000mm waterproof, UV50+. 304 stainless hardware standard (316 optional). 4 cm mattress standard (7 cm optional).*
Is tent breathable?
Yes, breathability can be built in. Our tents optional fabric feature:

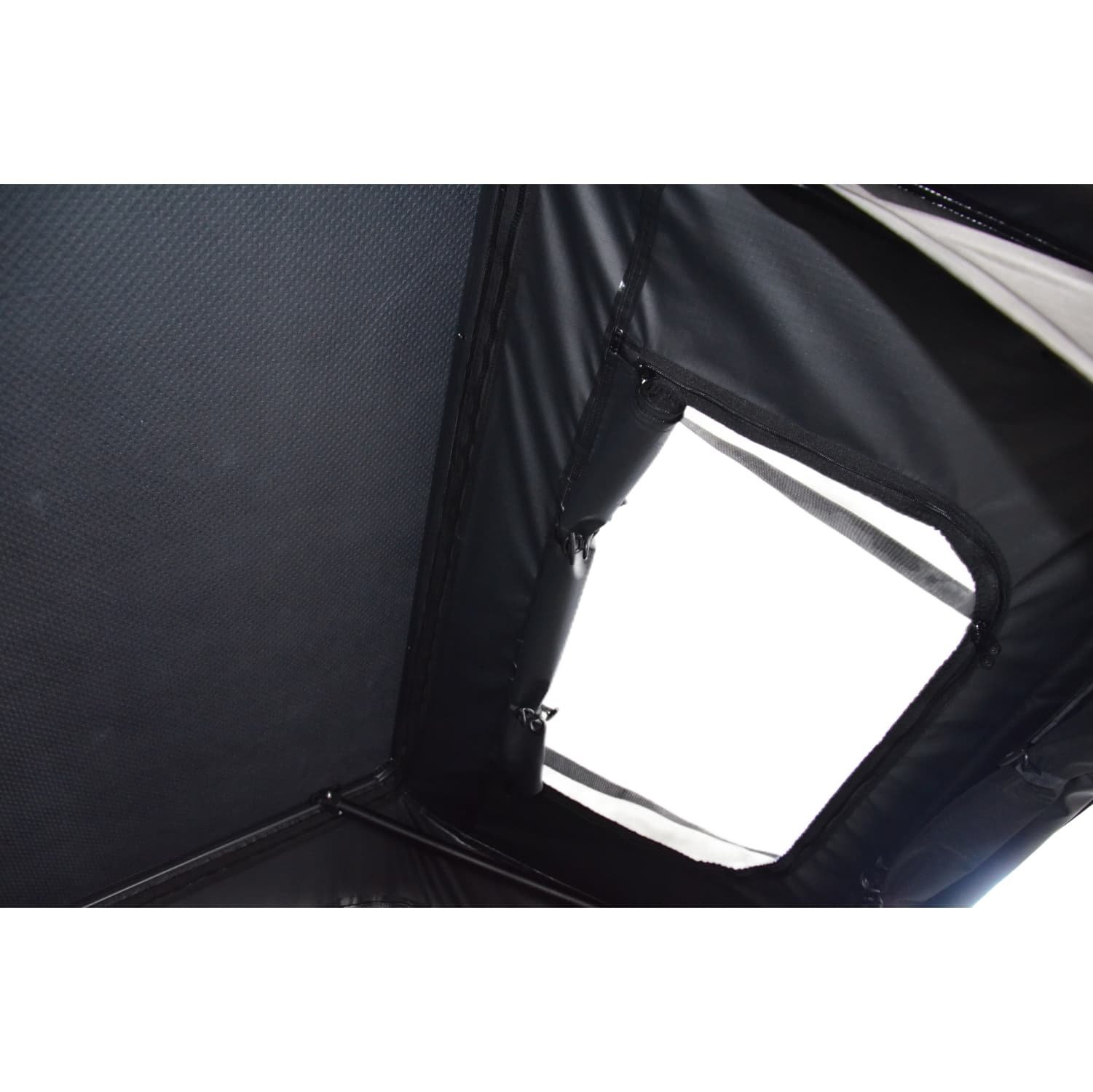

Ventilation windows for airflow
Breathable fabric layers that wick moisture
Mesh panels to reduce condensation while keeping bugs out
Can the aluminum shell be painted white?
Absolutely. Costs less than you’d expect.
With over 200 fabric colors to choose from and the ability to custom-paint the aluminum shell — white, burgundy, cement gray, or anything in between — we give you the freedom to create a rooftop tent that truly stands out.
What's the highest warranty period?
Standard warranty: 1 year. For 4WD rental businesses, we offer flexible solutions — with extended coverage up to 5 years. Tell us what your fleet needs, and we’ll build a plan around it.
Can I get a sample for quality check?
Sure. Sample cost is refundable with bulk orders.Welcome to contact us for more information.
Will it fit a tall person who is over 6.5ft/2meters?
Our global standard is the 6.5ft/2meters tent—we’ve found it’s the sweet spot for most markets. That said, we can absolutely tailor-make a different size for you, and our lead time is very short.
Product Details
SPORTGUST MODEL T Lift‑Up Series – Rooftop Tents
Overview

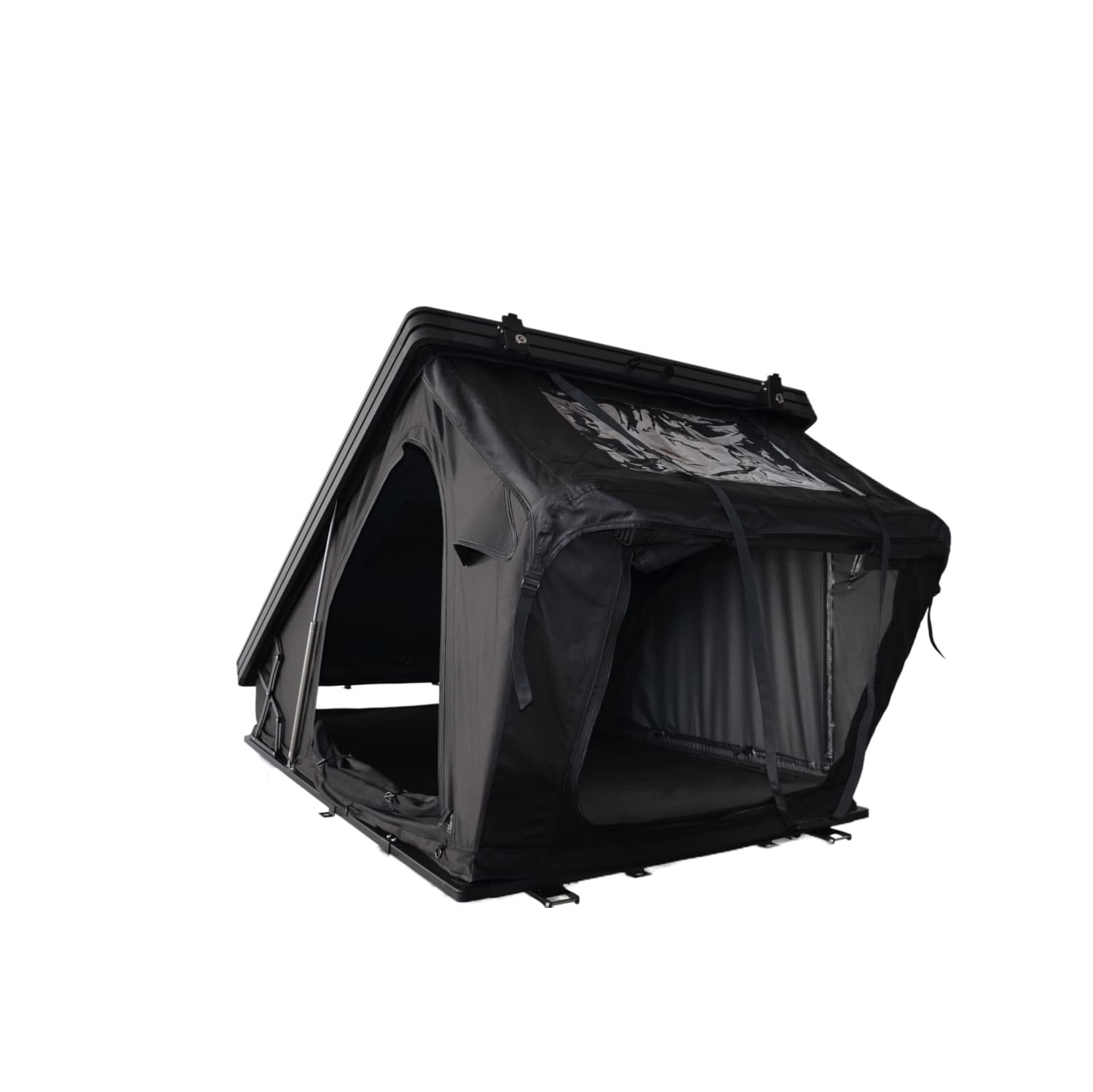

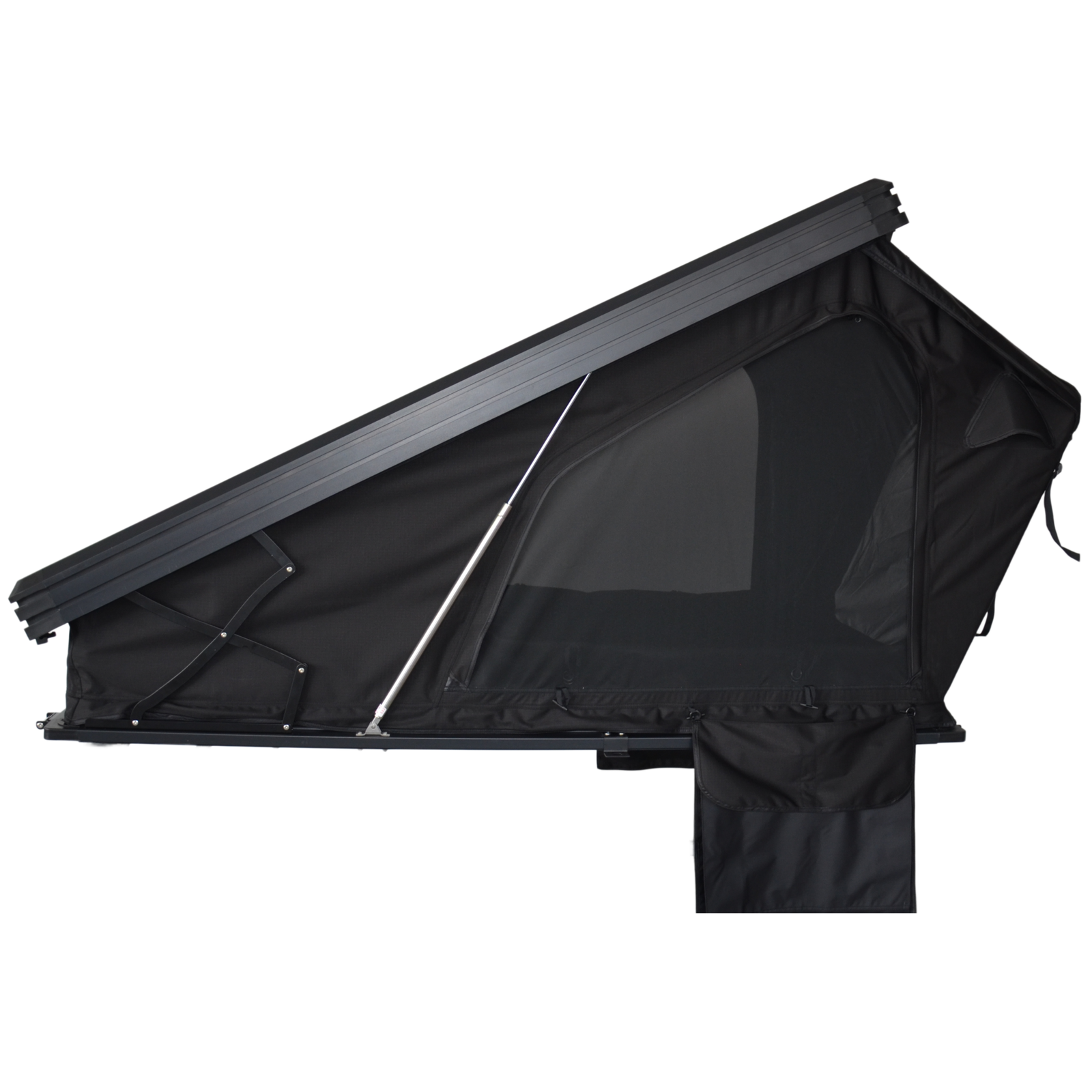

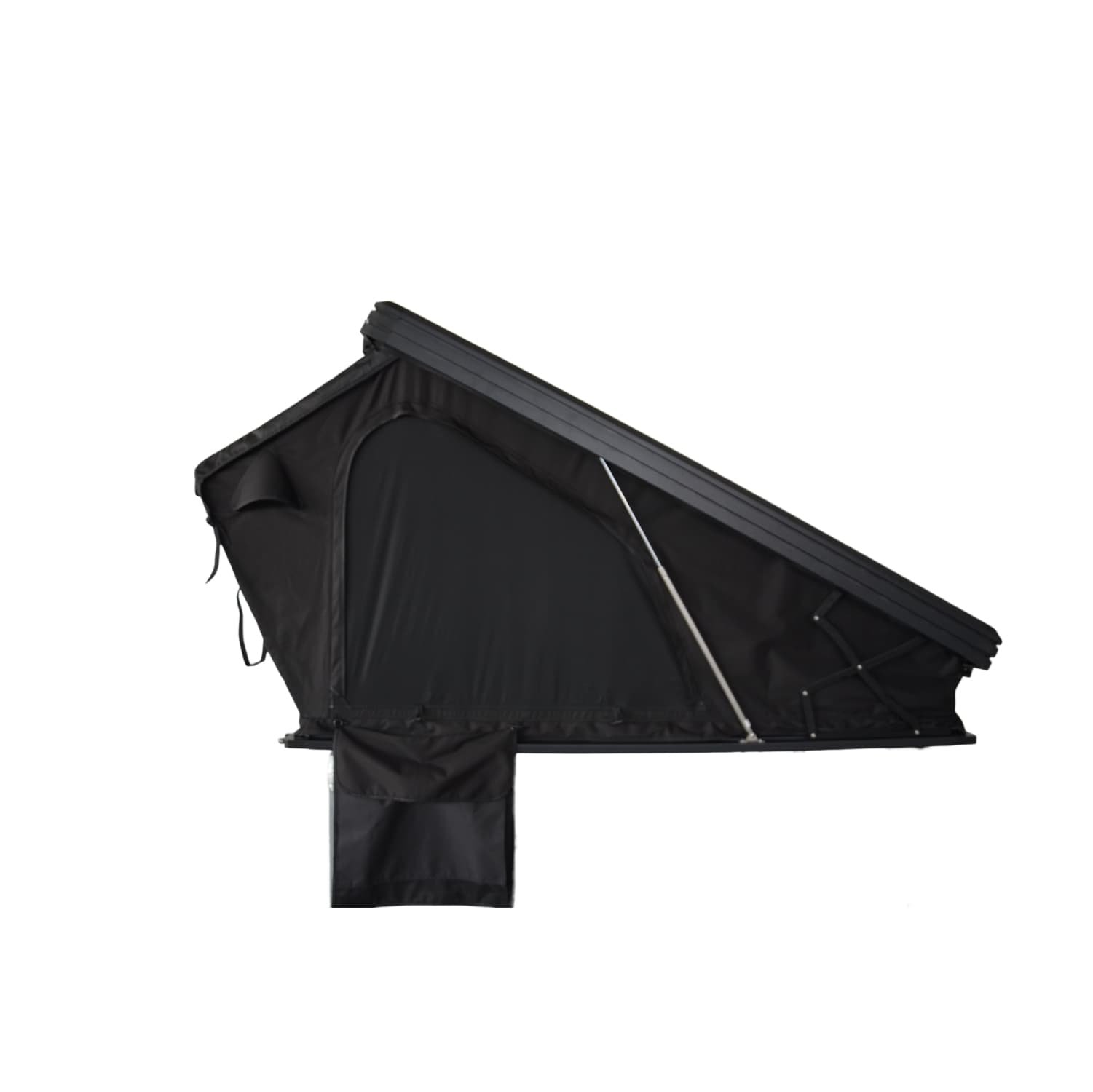

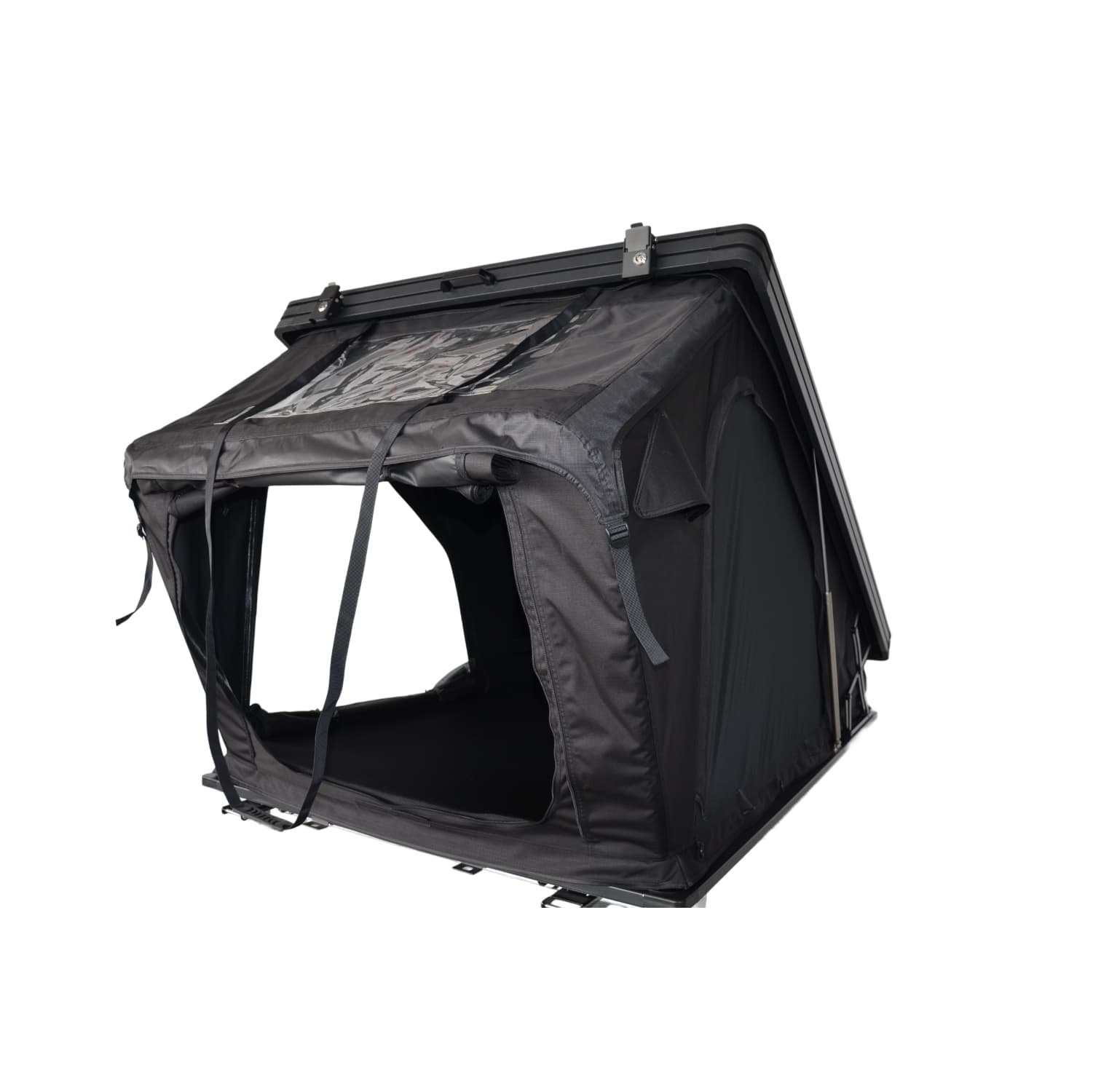

The MODEL T Lift‑Up Series is an extension of the MODEL T family, featuring a bull nose front and a fully lifting design (both front and rear elevate). Unlike standard wedge‑style tents that only lift at the front, the Lift‑Up creates a spacious, level‑height interior with excellent headroom. A dedicated new mould reduces closed thickness to just 12 cm (4.7 in) – among the thinnest in its class. The gas struts are internally mounted (stainless steel) for extended service life.
Model Comparison
| Model | 2.0 Standard | 2.5 Family |
|---|---|---|
| Best For | Couples | 2 adults + 1 child |
| Mattress Size (cm / in) | 190 × 120 × 4 (74.8 × 47.2 × 1.6) standard / 7 (2.8) optional | 200 × 135 × 4 (78.7 × 53.1 × 1.6) standard / 7 (2.8) optional |
| Open Internal Height – Front / Rear (cm / in) | 130 / 40 (51.2 / 15.7) | 130 / 40 (51.2 / 15.7) |
| Closed Size (cm / in) | 200 × 130 × 12 (78.7 × 51.2 × 4.7) | 210 × 145 × 12 (82.7 × 57.1 × 4.7) |
| Carton Size (cm / in) | 220 × 138 × 16 (86.6 × 54.3 × 6.3) | 230 × 153 × 16 (90.6 × 60.2 × 6.3) |
| Net Weight (kg / lbs) | 67 (148) | 79 (174) |
| Gross Weight (kg / lbs) | 81 (179) | 96 (212) |
| Gas Springs | Stainless steel, internally mounted | Stainless steel, internally mounted |
Net weight excludes aluminum ladder.
Container Loading (Approximate – Ladder Packed Inside Carton)
| Container | 2.0 Standard | 2.5 Family |
|---|---|---|
| 20GP | ~56 sets | ~42 sets |
| 40GP | ~112 sets | ~98 sets |
| 40HQ | ~126 sets (with additional row) | ~112 sets (with additional row) |
High cube (40HQ) allows one additional flat‑stacked row. Contact us for customised loading plans.
Common Specifications (All Models)
| Component | Details |
|---|---|
| Shell | Aluminum alloy (honeycomb structure); default black (white available, MOQ 100 units); bonded with ISR7003 adhesive – 5‑year waterproof frame warranty |
| Bull Nose Front | Distinctive aerodynamic styling |
| Lifting Design | Full lift (front + rear) – level interior, no sloping roof |
| Fabric | 280G polyester with PU coating; waterproof 3000mm, UV50+; SBS zippers, silicone-taped seams |
| Anti-Bug Mesh | 110g eco-friendly, color-fixed mesh |
| Mattress (Standard) | 4cm (1.6 in) high-density foam |
| Mattress (Optional Upgrade) | 7cm (2.8 in) dual-layer: 2cm memory foam + 5cm high-density sponge + 6mm condensate mat |
| Gas Springs | Stainless steel, internally mounted, tested to 60,000 cycles |
| Ladder | Telescopic aluminum ladder, 2.3m (90.6 in) standard (2.6m / 102.4 in optional) |
| Ladder Storage | Fits inside closed tent only with 4cm mattress; with 7cm mattress, ladder must be shipped separately |
| Internal Capacity | 300 kg (661 lbs) – all models |
| Hardware (Standard) | 304 stainless steel |
| Hardware (Optional Upgrade) | 316 marine-grade stainless steel (MOQ applies) |
| Scalability | Standard components include two crossbars and mounting accessories (optional); other mounting styles require drawings or samples for confirmation |
| Closed Storage Space | Bedding can be stored inside while traveling (with 4cm mattress) |
Customization Options
| Option | Details |
|---|---|
| Shell Color | Black (standard); white available (MOQ 100 units) |
| Fabric Type | Poly-cotton blend available |
| Performance Fabric | Moisture-wicking or breathable options available |
| Fabric Colors | Over 200 colors available |
| Logo Printing | Available on fabric or shell |
| Thermal Insulation Kit | Optional add-on for all models |
| 316 Stainless Steel Hardware | Optional (MOQ applies) |
Why Sportgust MODEL T Lift‑Up?
✅ Bull nose front & full lift design – level interior, no sloping roof
✅ 5‑year waterproof warranty on frame bonding – ISR7003 adhesive
✅ 60,000‑cycle tested gas springs – internally mounted for longer life
✅ 300kg internal capacity – sturdy and safe
✅ UV50+ & 3000mm waterproof fabric – all-weather protection
✅ Dual-layer memory foam mattress upgrade – premium sleep quality
✅ Ultra-thin closed profile (12 cm / 4.7 in) – lowest wind resistance
✅ Closed storage space – store bedding inside while traveling (with 4cm mattress)
✅ Flexible mounting options – standard or custom solutions
✅ Wide customization – colors, fabrics, branding, hardware
✅ 304 stainless hardware standard / 316 optional – corrosion resistance
✅ Container loading data provided – easy logistics planning
